Hazard-Family Reference

Every balloon color in a study selects one hazard family and its parameters. A family defines the per-pump conditional hazard

\[h(k) = P(\text{burst at pump } k \mid \text{survived pumps } 1..k-1), \qquad k = 1..N,\]

where \(N\) is the color’s max_pumps cap. From the hazard vector the engine derives the survival curve \(S(s) = \prod_{k=1}^{s}(1 - h(k))\) and the expected value of stopping at \(s\), \(\mathrm{EV}(s) = r \cdot s \cdot S(s)\) (with \(r\) the reward per pump). Hazards are clamped to \([0, 1]\); parameters are validated by the configuration layer before a study can run.

Because arbitrary hazards have no closed-form optimum, the EV-optimal stop \(s^*\) is found numerically — a full scan of \(\mathrm{EV}(s)\) over \(1 \le s \le N\), taking the smallest \(s\) on ties. The reward \(r\) scales the EV curve uniformly and never moves \(s^*\). For the default linear (dynamic-hazard) study this reproduces the classic \(11/5/2\) optima and the \(\sqrt{N}\) approximation.

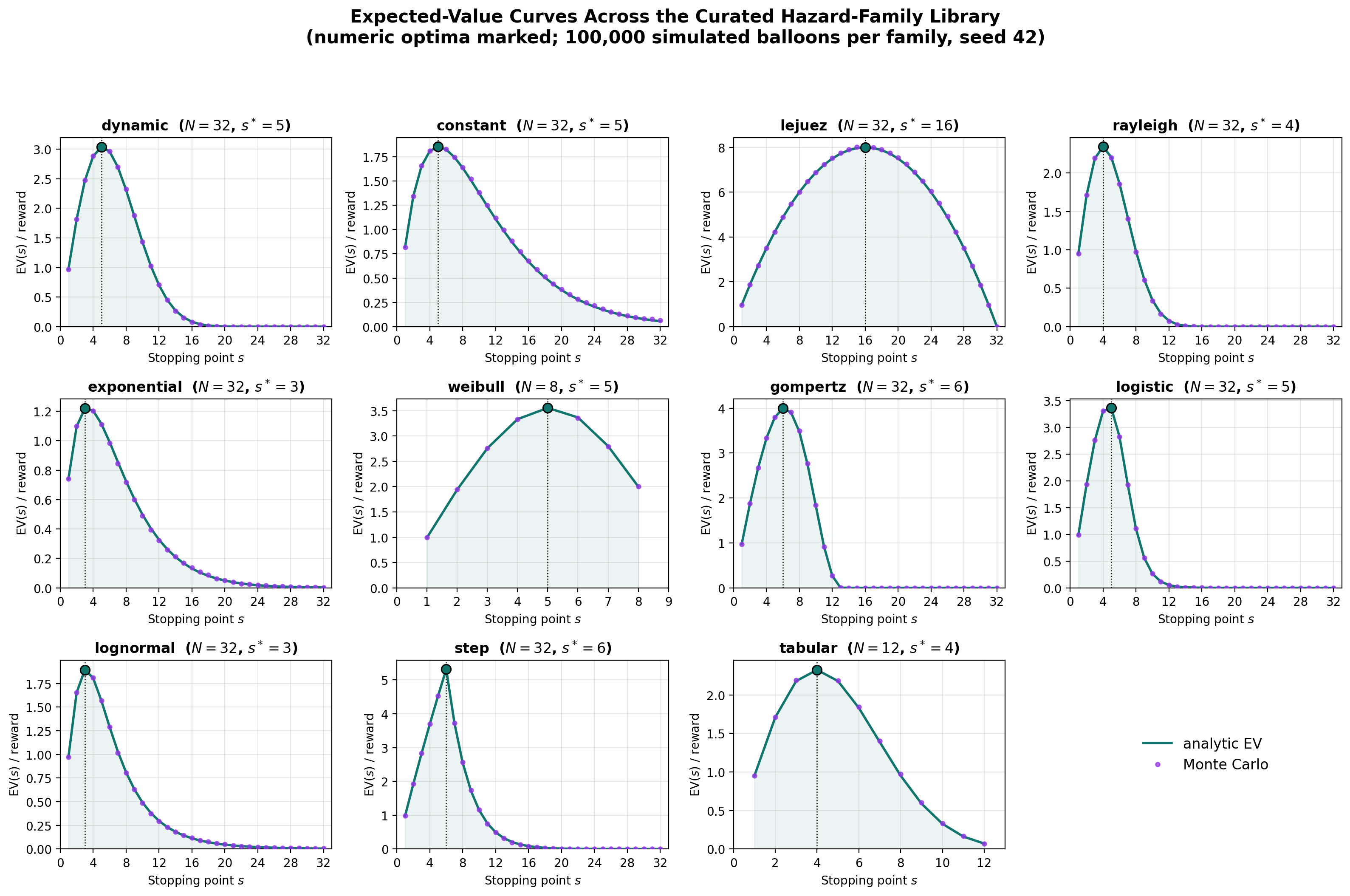

Expected-value curves for a representative parameterization of each family (unit reward). The dot marks the numeric optimum \(s^*\); the overlaid points are seeded Monte Carlo estimates. Regenerate with python scripts/plot_hazard_families.py.

Simulation-verified optima

The numeric optima are confirmed by independent Monte Carlo simulation — balloons are burst directly from the hazard vector and the EV curve is rebuilt empirically, sharing nothing with the analytic path but the hazards themselves:

python -m scoring.verification

prints a per-family PASS table (100,000 simulated balloons per family, seeded). The same check runs in the test suite (tests/test_verification.py), so the claim cannot silently rot as families evolve.

The families

dynamic — linear hazard (the flagship)

\[h(k) = \frac{k}{N}\]

The paradigm the instrument is named for: hazard grows with every pump, burst-time is approximately Rayleigh, and the optimum sits near \(\sqrt{N}\) — a reachable target that separates calibrated from indiscriminate play. No parameters; the risk profile is set entirely by the cap \(N\).

constant — flat per-pump probability

\[h(k) = p\]

Burst-time is geometric; the EV-optimum is approximately \(1/p\) (the continuous optimum is \(-1/\ln(1-p)\)).

Parameter	Constraint	Meaning
p	\(0 < p < 1\)	per-pump burst probability

lejuez — classic uniform BART

\[h(k) = \frac{1}{N - k + 1}\]

The original Lejuez et al. (2002) model: the burst point is uniform on \(\{1..N\}\), survival is \((N - s)/N\), and the optimum sits at \(N/2\). Use it to run traditional baselines or replicate classic studies on the same instrument. No parameters.

rayleigh — linear hazard with an explicit scale

\[h(k) = \frac{k}{\sigma^2}\]

Equivalent to the dynamic family with an effective \(N = \sigma^2\), decoupling the hazard’s slope from the color’s cap; the optimum is approximately \(\sigma\).

Parameter	Constraint	Meaning
sigma	\(\sigma > 0\)	Rayleigh scale; optimum \(\approx \sigma\)

exponential — memoryless burst-time

\[h(k) = 1 - e^{-\lambda}\]

A flat hazard expressed through a rate: burst-time is geometric and the optimum is approximately \(1/\lambda\).

Parameter	Constraint	Meaning
rate	\(\lambda > 0\)	hazard rate

weibull — tunable rising or falling hazard

\[h(k) = \frac{m}{N}\left(\frac{k}{N}\right)^{m-1}\]

The scale is tied to the cap \(N\); the shape \(m\) tunes the profile: \(m < 1\) decreasing, \(m = 1\) flat, \(m = 2\) linearly rising, \(m > 2\) accelerating. Note the hazard magnitude is \(O(1/N)\), so large caps produce gentle, flat EV peaks.

Parameter	Constraint	Meaning
shape	\(m > 0\)	Weibull shape

gompertz — exponentially accelerating hazard

\[h(k) = a\,e^{bk}\]

Risk compounds sharply late in the balloon — a “cliff” that punishes overshooting harder than the linear model.

Parameter	Constraint	Meaning
a	\(a > 0\)	baseline hazard scale
b	\(b > 0\)	exponential growth rate

logistic — safe-then-ramp S-curve

\[h(k) = \frac{h_{\max}}{1 + e^{-r_s (k - k_0)}}\]

Hazard stays low through an initial safe zone, then ramps toward a ceiling — useful for designs with an explicit “point of no return”.

Parameter	Constraint	Meaning
h_max	\(0 < h_{\max} \le 1\)	asymptotic hazard ceiling
midpoint	\(k_0 > 0\)	pump at which hazard is \(h_{\max}/2\)
steepness	\(r_s > 0\)	logistic slope

lognormal — rise-then-fall (non-monotone)

The hazard of a log-normal burst time, \(h(k) = f(k)/S(k)\): it rises to a mode and then falls, so surviving deep into a balloon genuinely signals safety. Computed with the standard library (no scipy).

Parameter	Constraint	Meaning
mu	—	log-scale location
sigma	\(\sigma > 0\)	log-scale shape

step — piecewise-constant hazard

levels[i] applies on the segment delimited by ascending breakpoints (segment 0 runs up to and including the first breakpoint). Encodes discrete regime changes: calm, then dangerous.

Parameter	Constraint	Meaning
breakpoints	≥ 1 strictly ascending positive pump counts	segment boundaries
levels	≥ 2 values in \([0, 1]\), len(levels) == len(breakpoints) + 1	hazard per segment

tabular — explicit hazard vector (the escape hatch)

values[k-1] \(= h(k)\), given directly as data — no formula at all. The vector’s length must equal the color’s cap \(N\) exactly, and every value must lie in \([0, 1]\). Use it to reproduce a hazard schedule from another study’s materials when no parametric family fits.

Parameter	Constraint	Meaning
values	length \(= N\), each in \([0, 1]\)	per-pump hazards

Choosing a family

• Replicating the classic BART? lejuez.

• Want calibration sensitivity (the instrument’s purpose)? dynamic, or rayleigh when the hazard slope should not depend on the cap.

• Simple stochastic baseline? constant / exponential.

• Late-risk designs? gompertz (smooth) or logistic / step (thresholded).

• A published hazard schedule? tabular.

Study files (study.json) name a family and its parameters — never code — and the configuration layer rejects invalid parameters with structured errors before a session can start.
